Features:
Nominal pressure: PN 1.6，2.5，4.0，6.4Mpa
Strength testing pressure: PT2.4，3.8，6.0，9.6,Mpa
Applicable media: SY11-(16-64)C Water.Oil.Gas
Applicable temperature: -29-180℃
Adoptive standards:
Main parts and materials
|
Parts ;name |
SY11-（16-64）C |
SY11-（16-64）P |
SY11-（16-64）R |
|||||
|
Body |
WCB |
ZG1Cr18Ni9TiCF8 |
ZG1Cr18Ni12Mo2TiCF8M |
|||||
|
Bonnet |
WCB |
ZG1Cr18Ni9TiCF8 |
ZG1Cr18Ni12Mo2TiCF8M |
|||||
|
Filter |
1Cr18Ni9Ti304 |
1Cr18Ni9Ti304 |
1Cr18Ni12Mo2Ti316 |
|||||
|
Gasket |
Polytetrafluorethylene(PTFE) |
|||||||

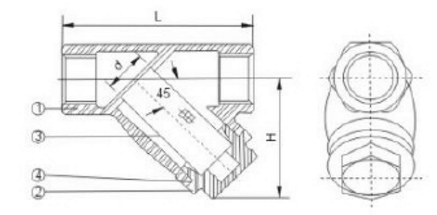

Product parameter:
| Main outer size | |||||
| DN | G | L | E | B | H |
| 8 | 1/4″ | 64 | 12 | 24 | 44 |
| 10 | 3/8″ | 64 | 12 | 24 | 44 |
| 15 | 1/2″ | 64 | 14 | 26 | 44 |
| 20 | 3/4″ | 75 | 15 | 32 | 52 |
| 25 | 1″ | 89 | 17 | 41 | 64 |
| 32 | 11/4″ | 102 | 20 | 49 | 68 |
| 40 | 11/2″ | 118 | 20 | 56 | 76 |
| 50 | 2″ | 139 | 22 | 69 | 88 |
| 65 | 21/2″ | 180 | 28 | 84 | 110 |
| 80 | 3″ | 200 | 32 | 98 | 135 |
