Product parameter:

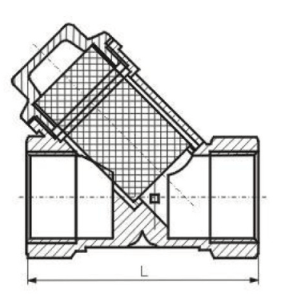

DN | G/in | L |
15 | 1/2 | 56 |
20 | 3/4 | 69 |
25 | 1 | 82 |
32 | 1-1/4 | 90 |
40 | 1-1/2 | 101 |
50 | 2 | 121 |
TAG:  Copper Strainer
Features:
Product name : Copper Strainer
Inside Nominal Diameter: 15-50mm
Body material: copper
Nominal Pressure: 1.6 Mpa
Applicable temperature: ≤150℃
Applicable media: water ,Non corrosive liquid,Saturated steam
TAG: Copper Strainer
Product parameter:
DN | G/in | L |
15 | 1/2 | 56 |
20 | 3/4 | 69 |
25 | 1 | 82 |
32 | 1-1/4 | 90 |
40 | 1-1/2 | 101 |
50 | 2 | 121 |
Adoptive standards:
Main Specifications
Product name : Copper Strainer
Inside Nominal Diameter: 15-50
Body material: copper
Nominal Pressure: 1.6 Mpa
Applicable temperature: ≤150℃
Applicable media:water ,Non corrosive liquid,Saturated steam
1.The structure is simple, the installation is convenient.
2.Structure with short length, small size, light weight, convenient storage and pipeline layout.
3.The filter net can be disassembled, and the maintenance is convenient.
